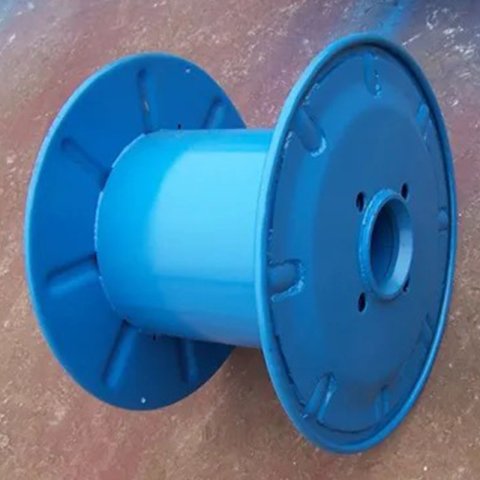

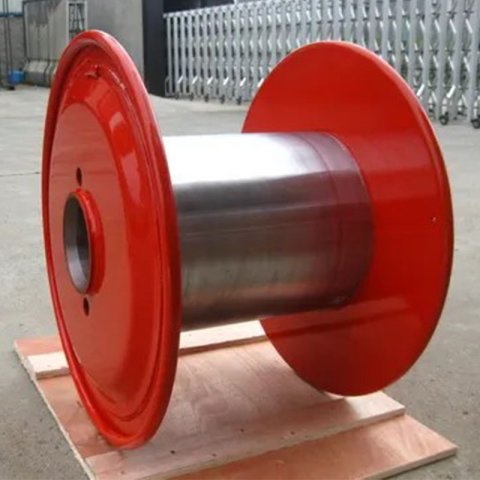

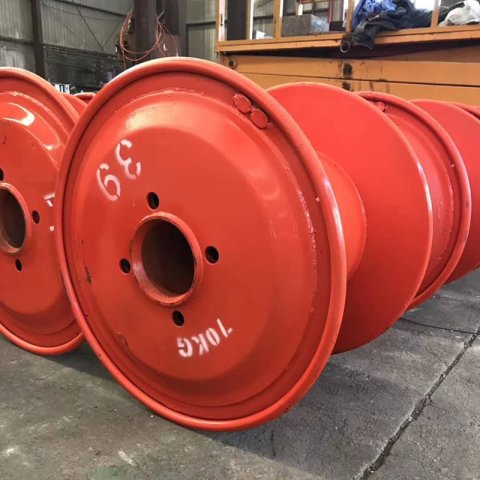

Metal Cable Spool of Double Layer
Manufactured according to GB4004-83, JB/T7600.3-94 and DIN46395 standards, the Metal Cable Spool of Double Layer is produced from Q235 carbon steel plate through assembly welding and precision machining. The spool features high rigidity and machining accuracy, with dynamic balancing to ensure stable operation at high speeds for wire drawing and stranding applications.
Inaccordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards,the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing.
The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high speed drawing-wire machine and wire stranding machine.
Application: Drawing, buncher and stranding, steel, copper or aluminum wire.
Standard:Machined barrel, protection by oil, dynamically balancing for 30 m/sec and over.
Surface finish: Painted as per customer's specification.
Customized: Weight, logo and numbering (engraved or painted).
Optionals: Fully machining (barrel, inside and outside flanges), reinforced barrel.
Standard flange (mm): 400, 560, 630, 760, 800, 1000. Other dimensions are available.

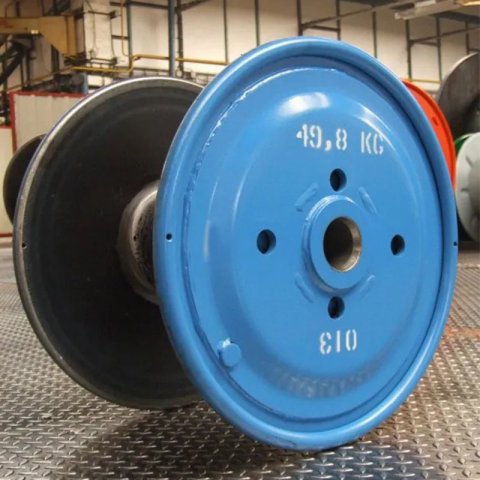

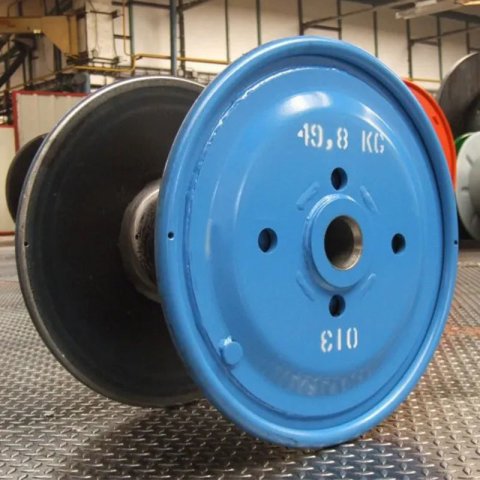

560mm Multifunctional Double Layer Wire Spool
Size range
A wide range of flange diameters from 200mm to 1250mm according to DIN 46397 and imperial dimensions from 16" to 48".
Application
These are in-process take-up reels for high speed single and multiwire drawing machines, also stranding and bunching machines, for ferrous and non ferrous wires.
Typical Products
Suitable for multiwire, plainand tinned copper from 6/0.02mm. to 12/0.4mm diameter.
Plain and tinned single ends of copper from 0.1mm to 3.5mm diameter.
Single ends of aluminium from 1mm to 5mm diameter.
Enamelled wire manufacture.
Technical Data
Manufactured from high quality steel plate and tube.
Welded by MIG process, all welds and weld preparations confirming to BS 5135.
Machined on CNC Lathes for precision and repeatable dimensions and tolerances.
Dynamically balanced to ISO 1940 for operation at 40 M/Sec.
Precision machined for use in robotic handling systems, and on automatic guided vehicles.
Designed for minimal flange disortin when loaded, to ensure uniform traversing and high speed pay-off into extrusion lines, bunchers, re-wind for braiding, etc.
Suitable for transportation between factories.
Options
Several options are available to meet your exact requirements:
Non-standard metric or imperial dimensions.
Dynamically balanced for operation at 60 M/Sec.
TAISONG is specialized in the design and manufacture Wire Spools, Plastic Spools , Steel Cable Spools, Steel Bobbin , Warp Knitting Beam, Empty spools , Cable Spools , Cable Reel , Cable Spool , Storage Reel, Pulley Block in the industry .
Product Parameters
PND series steel spool
Serial Number
Specification Model
Flange Diameter
Drum diameter
Axle Hole Diameter
Carrying Hole Diamater
External Width
Internal Width
1
PND 315
315
180/200/224
125/127
16
236
200
2
PND 335
335
200/224/250
265
224
3
PND 400
400
224/250/280
28
300
250
4
PND 500
500
280/315/355
375
315
5
PND 560
560
315/355/400
425
355
6
PND 630
630
355/400/450
475
400
7
PND 710
710
400/450/500
250
40
530
450
8
PND 800
800
450/500/560
600
500
9
PND 1000
1000
560/630/710
50
750
630
10
PND 1250
1250
710/800/900
950
800
More dimensions according to your drawing
