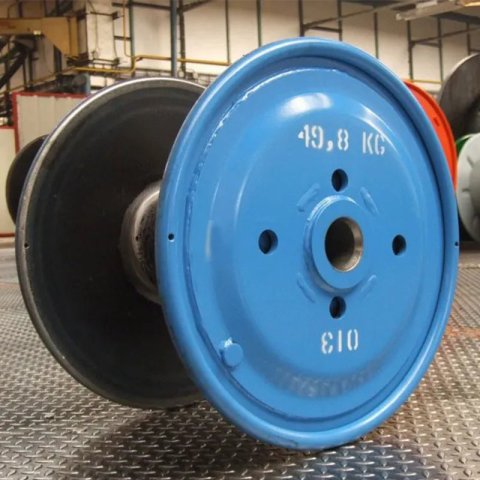

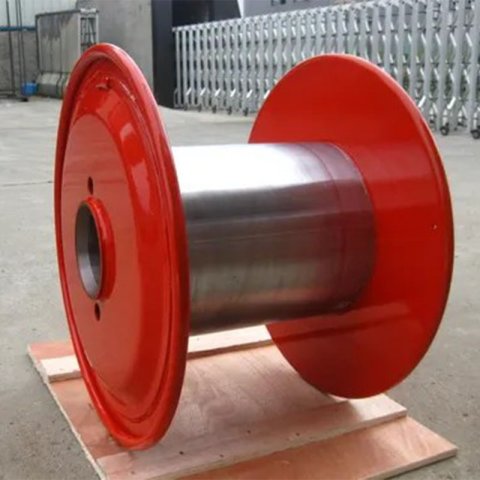

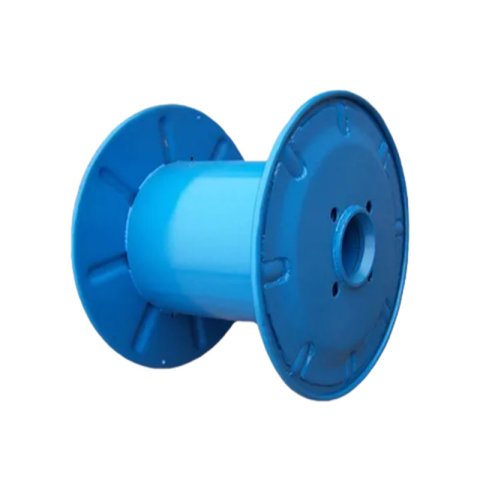

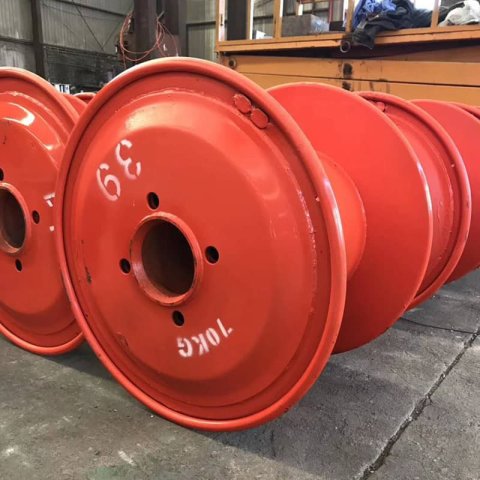

Double-layer metal wire spool manufactured from Q235 carbon steel plate, with welded assembly and machined finishing. Review the PND dimension table below, then confirm the spool size, mounting dimensions, winding load and machine requirements for your order.
Category: Double-Layer High-Speed Spools
E-Mail: boss@sdtsgm.com
Double-Layer Metal Wire Spool
Product Description
Inaccordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards,the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing.
The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high speed drawing-wire machine and wire stranding machine.
Application: Drawing, buncher and stranding, steel, copper or aluminum wire.
Standard:Machined barrel, protection by oil, dynamically balancing for 30 m/sec and over.
Surface finish: Painted as per customer's specification.
Customized: Weight, logo and numbering (engraved or painted).
Optionals: Fully machining (barrel, inside and outside flanges), reinforced barrel.

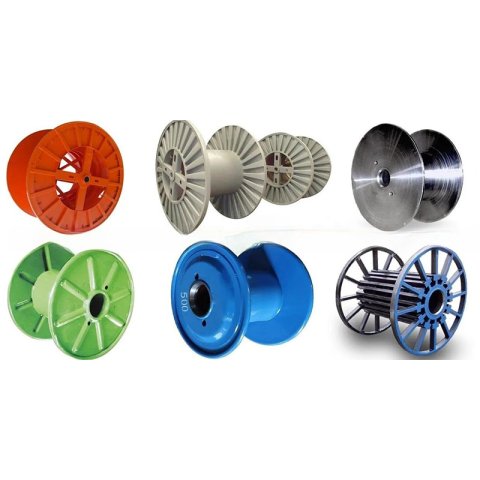

Standard flange (mm): 400, 560, 630, 760, 800, 1000. Other dimensions are available.
PND series steel spool
| Serial Number | Specification Model | Flange Diameter | Drum diameter | Axle Hole Diameter | Carrying Hole Diamater | External Width | Internal Width |
| 1 | PND 315 | 315 | 180/200/224 | 125/127 | 16 | 236 | 200 |
| 2 | PND 335 | 335 | 200/224/250 | 265 | 224 | ||
| 3 | PND 400 | 400 | 224/250/280 | 28 | 300 | 250 | |
| 4 | PND 500 | 500 | 280/315/355 | 375 | 315 | ||
| 5 | PND 560 | 560 | 315/355/400 | 425 | 355 | ||
| 6 | PND 630 | 630 | 355/400/450 | 475 | 400 | ||
| 7 | PND 710 | 710 | 400/450/500 | 250 | 40 | 530 | 450 |
| 8 | PND 800 | 800 | 450/500/560 | 600 | 500 | ||
| 9 | PND 1000 | 1000 | 560/630/710 | 50 | 750 | 630 | |
| 10 | PND 1250 | 1250 | 710/800/900 | 950 | 800 |
