Double Layer High Speed Spool is designed for cable winding, handling and storage applications, combining high-strength steel components with precision engineering. The reinforced structure provides reliable support and improved resistance to deformation during industrial use.
Category: Double Layer High Speed Spool
E-Mail: boss@sdtsgm.com

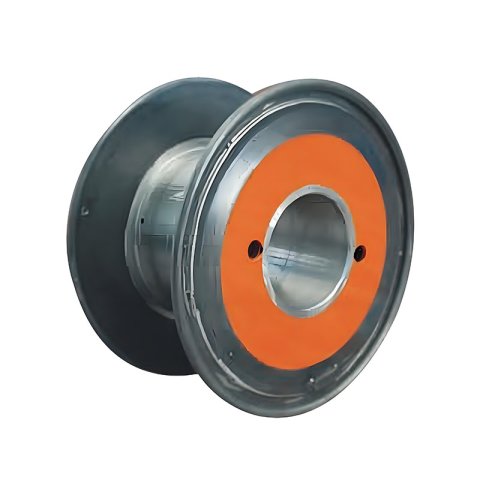

Double Layer High Speed Spool
Product Description

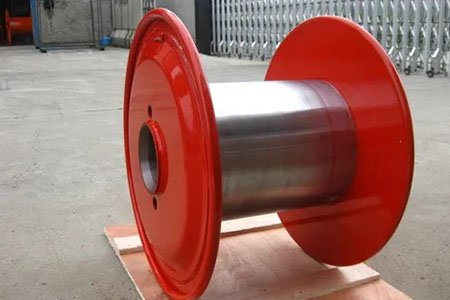

Inaccordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards,the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing.

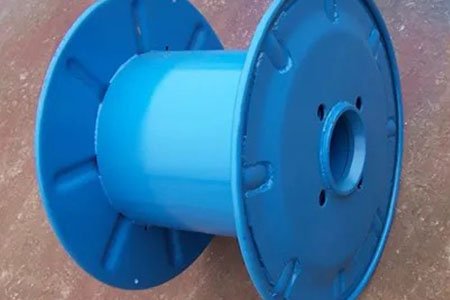

The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high speed drawing-wire machine and wire stranding machine.

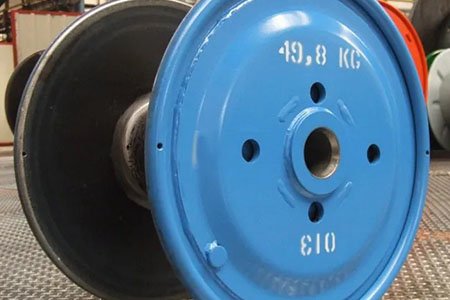

Application: Drawing, buncher and stranding, steel, copper or aluminum wire.
Standard:Machined barrel, protection by oil, dynamically balancing for 30 m/sec and over.
Surface finish: Painted as per customer's specification.
Customized: Weight, logo and numbering (engraved or painted).
Optionals: Fully machining (barrel, inside and outside flanges), reinforced barrel.
Standard flange (mm): 400, 560, 630, 760, 800, 1000. Other dimensions are available.
Superior Craftsmanship: Built from high-strength solid wood and steel with precision engineering for exceptional durability and deformation resistance.
Versatile Compatibility: Seamlessly adapts to various cable sizes and specifications for winding, handling, and storage.
End-to-End Reliability: Provides stable support across factory production, job site installation, and long-distance transport.
Enhanced Efficiency: Effectively prevents cable tangling and damage, significantly improving storage and construction efficiency.

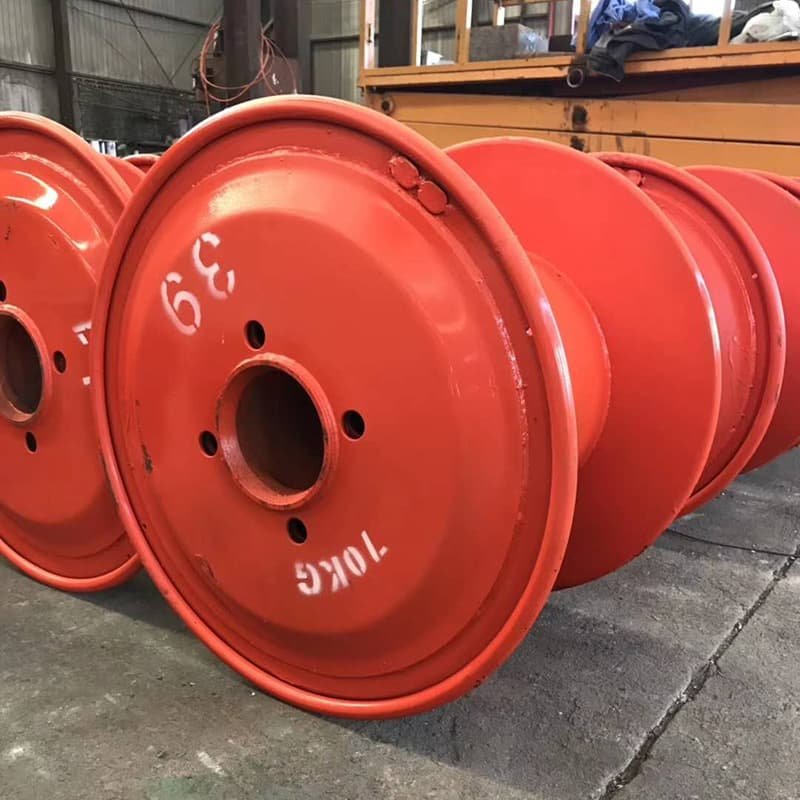

PND series steel spool
| Serial Number | Specification Model | Flange Diameter | Drum diameter | Axle Hole Diameter | Carrying Hole Diamater | External Width | Internal Width |
| 1 | PND 315 | 315 | 180/200/224 | 125/127 | 16 | 236 | 200 |
| 2 | PND 335 | 335 | 200/224/250 | 265 | 224 | ||
| 3 | PND 400 | 400 | 224/250/280 | 28 | 300 | 250 | |
| 4 | PND 500 | 500 | 280/315/355 | 375 | 315 | ||
| 5 | PND 560 | 560 | 315/355/400 | 425 | 355 | ||
| 6 | PND 630 | 630 | 355/400/450 | 475 | 400 | ||
| 7 | PND 710 | 710 | 400/450/500 | 250 | 40 | 530 | 450 |
| 8 | PND 800 | 800 | 450/500/560 | 600 | 500 | ||
| 9 | PND 1000 | 1000 | 560/630/710 | 50 | 750 | 630 | |
| 10 | PND 1250 | 1250 | 710/800/900 | 950 | 800 |
