Double-layer high-speed bobbin for cable, ferrous and non-ferrous wire processing on drawing, stranding and bunching machines. Compare the dimension table with your machine drawing and specify the required operating speed and balancing requirements.
Category: Double-Layer High-Speed Spools
E-Mail: boss@sdtsgm.com

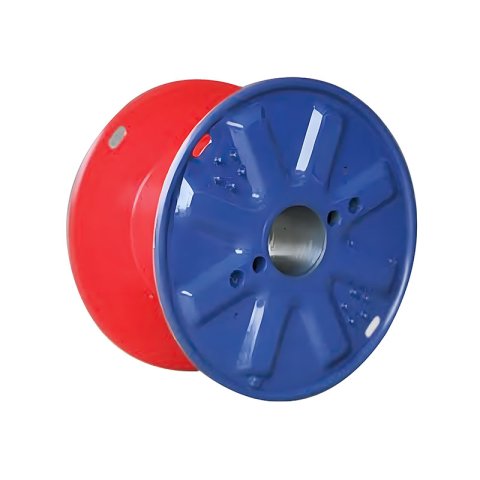

Double Layer High Speed Bobbin
Product Description
Inaccordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards,the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing.
The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high speed drawing-wire machine and wire stranding machine.
Application: Drawing, buncher and stranding, steel, copper or aluminum wire.
Standard:Machined barrel, protection by oil, dynamically balancing for 30 m/sec and over.
Surface finish: Painted as per customer's specification.
Customized: Weight, logo and numbering (engraved or painted).
Optionals: Fully machining (barrel, inside and outside flanges), reinforced barrel.
Standard flange (mm): 400, 560, 630, 760, 800, 1000. Other dimensions are available.

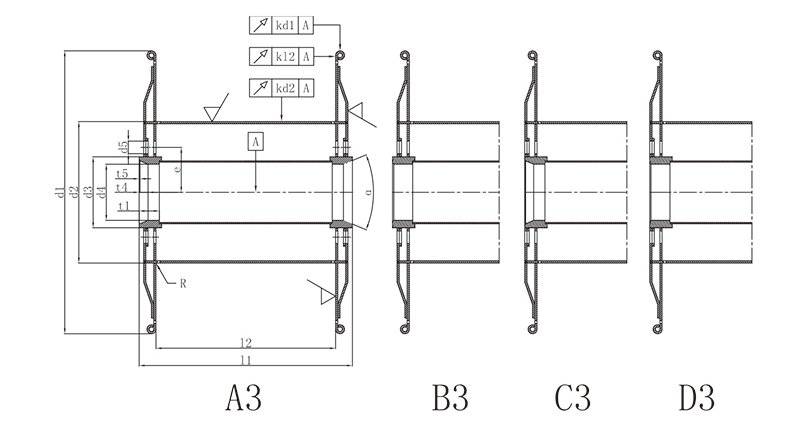

specification Type | d1 | d2 | d3 | d4 | d5 | e | l1 | l2 | t1 | t2 | t3 | V1dm3 | |
315 | 315 | 180 | 236 | 200 | 10.49 | ||||||||
315 | 315 | 200 | 236 | 200 | 9.3 | ||||||||
315 | 315 | 224 | 16 | 236 | 200 | 7.7 | |||||||
355 | 355 | 200 | 265 | 224 | 15.13 | ||||||||
355 | 355 | 224 | 16 | 265 | 224 | 13.34 | |||||||
355 | 355 | 250 | 265 | 224 | 11.17 | ||||||||
400 | 400 | 224 | 300 | 250 | 21.55 | ||||||||
400 | 400 | 250 | 300 | 250 | 19.13 | ||||||||
400 | 400 | 280 | 300 | 250 | 16.01 | ||||||||
450 | 450 | 250 | 335 | 260 | 45 / 63 | 20 | 2 | 30.77 | |||||
450 | 450 | 280 | 158 | 125 / 127 | 28 | 100 | 335 | 260 | 45 / 63 | 20 | 2 | 27.28 | |
450 | 450 | 315 | 335 | 260 | 45 / 63 | 20 | 2 | 22.7 | |||||
500 | 500 | 250 | 375 | 315 | 45 / 63 | 20 | 2 | 46.36 | |||||
500 | 500 | 280 | 158 | 125 / 127 | 28 | 100 | 375 | 315 | 45 / 63 | 20 | 2 | 42.43 | |
500 | 500 | 315 | 375 | 315 | 45 / 63 | 20 | 2 | 37.28 | |||||
500 | 500 | 355 | 375 | 315 | 45 / 63 | 20 | 2 | 30.66 | |||||
560 | 560 | 280 | 425 | 355 | 65.54 | ||||||||
560 | 560 | 315 | 425 | 355 | 59.74 | ||||||||
560 | 560 | 355 | 425 | 355 | 52.27 | ||||||||
560 | 560 | 400 | 425 | 355 | 42.8 | ||||||||
630 | 630 | 250 | 475 | 400 | 105 | ||||||||
630 | 630 | 280 | 475 | 400 | 100.01 | ||||||||
630 | 630 | 355 | 475 | 400 | 85.05 | ||||||||
630 | 630 | 315 | 475 | 400 | 93.47 | ||||||||
630 | 630 | 450 | 475 | 400 | 61.04 | ||||||||
710 | 710 | 355 | 530 | 450 | 133.55 | ||||||||
710 | 710 | 400 | 530 | 450 | 121.55 | ||||||||
710 | 710 | 450 | 158 / 300 | 125 / 127 | 40 | 160 / 170 | 530 | 450 | 106.54 | ||||
710 | 710 | 500 | 530 | 450 | 89.76 | ||||||||
800 | 800 | 400 | 600 | 500 | 125 | 20 / 40 | 2.5 | 188.4 | |||||
800 | 800 | 450 | 158 / 300 | 125 / 127 | 40 | 160 / 170 | 600 | 500 | 125 | 20 / 40 | 2.5 | 171.72 | |
800 | 800 | 500 | 600 | 500 | 125 | 20 / 40 | 2.5 | 153.08 | |||||
800 | 800 | 560 | 600 | 500 | 125 | 20 / 40 | 2.5 | 128.11 | |||||
1000 | 1000 | 500 | 158 / 300 | 125 / 127 | 50 | 250 | 750 | 630 | 382.69 | ||||
1000 | 1000 | 560 | 750 | 630 | 350.24 | ||||||||
1000 | 1000 | 630 | 750 | 630 | 307.73 | ||||||||
1000 | 1000 | 710 | 750 | 630 | 253.03 | ||||||||
1250 | 1250 | 630 | 950 | 800 | 732 | ||||||||
1250 | 1250 | 710 | 950 | 800 | 664.68 | ||||||||
1250 | 1250 | 800 | 950 | 800 | 579.33 | ||||||||
1250 | 1250 | 900 | 950 | 800 | 472.57 | ||||||||
Send the flange diameter, barrel diameter, traverse width, bore size and drawing revision. Include the material being wound, loaded weight, operating speed where applicable, quantity and delivery country.
Send your quotation requirements or email boss@sdtsgm.com. Send drawings or reference photos through WhatsApp.
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.
Shandong Taisong Industry & Trade Co., Ltd. Located at the foot of the beautiful Mount Tai, it provides packaging services for global rope, net, wire and cable enterprises. High-tech enterprises mainly engaged in wooden wire trays, European standard wooden trays, American standard wooden trays, export fumigation-free trays, all-iron wire trays, plastic wire trays, and paper wire trays, and can provide commodity inspection performance sheets. Dangerous packaging export provides dangerous goods packaging certificate. The company is a professional packaging products manufacturer with a wide variety of products.
Yes. Send a drawing or reference sample details showing flange diameter, barrel diameter, traverse width, bore size and mounting requirements. Include the wound material, loaded weight and operating speed where applicable. We will review the configuration before quotation.
Send your drawing and requirements, or contact boss@sdtsgm.com.
Qingdao port, Shanghai port.
30% Deposit, L/C
Delivery time depends on the product configuration, quantity, customization and production schedule. Please provide your required delivery date and destination with the inquiry. Confirm the production lead time and shipping arrangement in your quotation before ordering.
After the product configuration and price are reviewed, you can request a sample for evaluation. Send your drawing, sample quantity and delivery address details. Confirm sample charges, shipping costs and the conditions for any shipping-fee reimbursement before dispatch.
Send the spool type or product link, flange diameter, barrel diameter, traverse width, bore size, winding load, quantity and destination country or port. For a machine spool, include operating speed and mounting requirements. A drawing or reference photo helps us review the configuration.
For tape products, send thickness, width, tolerance, coating, coil dimensions and quantity.
Email boss@sdtsgm.com, send your drawing through WhatsApp, or use our quotation form.
