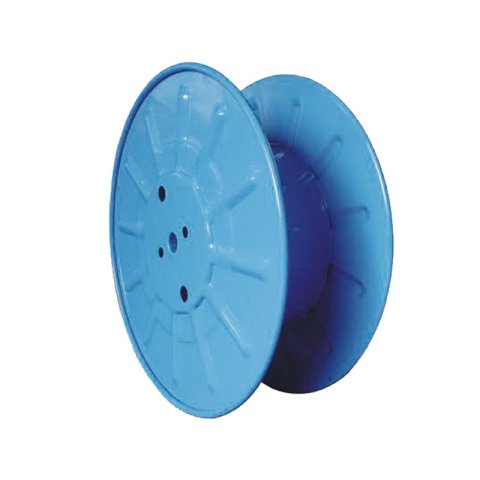

Pressed Steel Cable Drum for Wire Rope and Cable Applications
Product Description
In accordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards, the product is formed by punching and welding common carbon steelQ235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure.
The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1pcs |
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
| Material: | Steel | Usage: | Winding |
| Size: | 400-1000 | Color: | Blue,green,or As Customer Requirements |
| Package: | Pack With Pallet | OEM: | Accept |
| Highlight: | Steel Wire Coil Punching Bobbin , OEM Wire Coil Punching Bobbin | ||

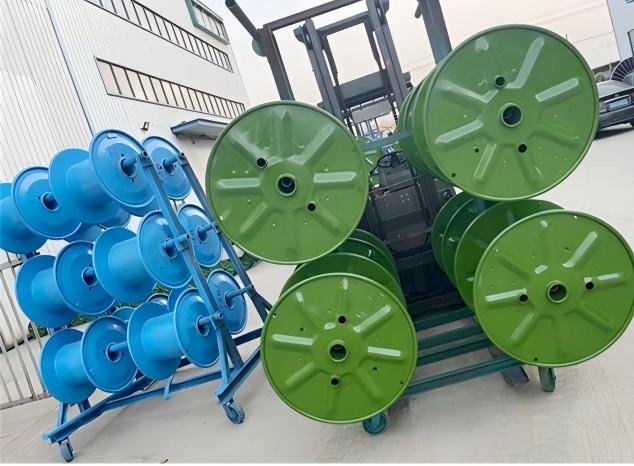

Steel Coil Punching Bobbin/Reel/Spool/Drum
1. Application :
This product is stamped and formed by steel plate, and is produced according to customer requirements or JB/T8997.4-1999 DIN46395 standards.It is suitable for turnover or delivery of cables, wire ropes, steel cords, copper wires, aluminum wires, etc.
2. Specification
| specification | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Volume |
| 315 | 315 | 180 |
158 | 28
125/127 | 16 | 100 | 236 | 200 | 10.5 |
| 200 | 9.3 | ||||||||
| 240 | 7.7 | ||||||||
| 355 | 355 | 200 | 265 | 224 | 15.1 | ||||
| 250 | 11.2 | ||||||||
| 400 | 400 | 224 | 300 | 250 | 21.6 | ||||
| 280 | 16.0 | ||||||||
| 450 | 450 | 250 |
28 | 335 | 280 | 30.8 | |||
| 315 | 22.7 | ||||||||
| 500 | 500 | 280 | 375 | 315 | 42.5 | ||||
| 335 | 30.7 | ||||||||
| 560 | 560 | 315 | 425 | 355 | 59.8 | ||||
| 400 | 42.8 | ||||||||
| 630 | 630 | 355 | 475 | 400 | 86.2 | ||||
| 450 | 61.1 | ||||||||
| 710 | 710 | 400 | 530 | 450 | 121.6 | ||||
| 500 | 89.8 | ||||||||
| 800 | 800 | 450 | 40 | 170 | 600 | 500 | 172 | ||
| 560 | 128 | ||||||||
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.
