Packaging services for rope, mesh, wire and cable companies worldwide.
Applicable to cables, steel wires, steel ropes, copper, aluminium and welding wires, etc., and also used for in-plant circulation and delivery of shipments.
Category: Punching Spool Bobbin
E-Mail: boss@sdtsgm.com

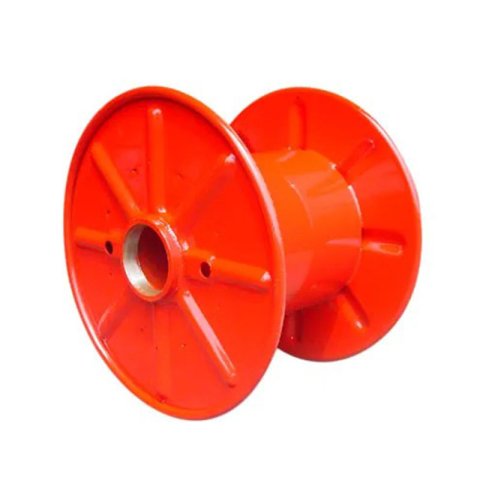

Punching Spool Bobbin
Product Description
In accordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards, the product is formed by punching and welding common carbon steelQ235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure.
The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.

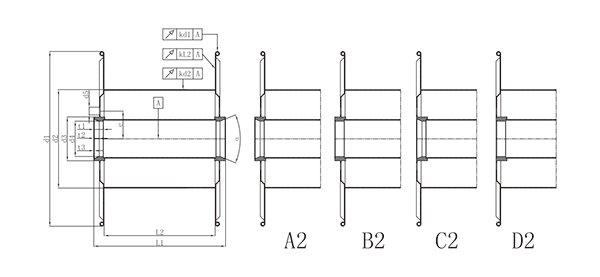

specification Type | d1 | d2 | d3 | d4 | d5 | 3 | L1 | l2 | V1dm3 |
200 | 200 | 80 | 60 | 36 | 8 | 40 | 150 | 125 | 3.3 |
200 | 200 | 100 | 60 | 36 | 8 | 40 | 150 | 125 | 2.9 |
250 | 250 | 100 | 60 / 71 | 36 | 8 / 16 | 40 / 60 | 190 | 160 | 6.6 |
250 | 250 | 125 | 60 / 71 | 36 | 8 / 16 | 40 / 60 | 190 | 160 | 5.9 |
315 | 315 | 125 | 236 | 200 | 13.1 | ||||
315 | 315 | 160 | 236 | 200 | 11.6 | ||||
355 | 355 | 140 | 265 | 224 | 18.7 | ||||
355 | 355 | 180 | 265 | 224 | 16.5 | ||||
400 | 400 | 160 | 300 | 250 | 26.4 | ||||
400 | 400 | 200 | 300 | 250 | 23.6 | ||||
450 | 450 | 180 | 80 / 158 | 56 / 125 / 127 | 16 / 32 | 71 / 100 | 335 | 280 | 37.4 |
450 | 450 | 224 | 80 / 158 | 56 / 125 / 127 | 16 / 32 | 71 / 100 | 335 | 280 | 33.5 |
500 | 500 | 200 | 80 / 158 | 56 / 125 / 127 | 16 / 32 | 71 / 100 | 375 | 315 | 51.9 |
500 | 500 | 250 | 80 / 158 | 56 / 125 / 127 | 16 / 32 | 71 / 100 | 375 | 315 | 46.4 |
560 | 560 | 224 | 425 | 355 | 73.4 | ||||
560 | 560 | 280 | 425 | 355 | 65.5 | ||||
630 | 630 | 250 | 475 | 400 | 105.0 | ||||
630 | 630 | 315 | 475 | 400 | 93.5 | ||||
710 | 710 | 355 | 530 | 450 | 133.6 | ||||
760 | 760 | 430 | 100 / 158 | 80 / 125 / 127 | 28 / 40 | 160 | 310 | 270 | 83.2 |
800 | 800 | 400 | 100 / 158 | 80 / 125 / 127 | 28 / 40 | 160 | 600 | 500 | 188.4 |
900 | 900 | 450 | 100 / 158 | 80 / 125 / 127 | 28 / 40 | 160 | 670 | 560 | 267.0 |
1000 | 1000 | 500 | 100 / 158 | 80 / 125 / 127 | 28 / 40 | 160 | 750 | 630 | 370.9 |
1120 | 1120 | 560 | 100 / 158 | 80 / 125 / 127 | 28 / 40 | 160 | 850 | 710 | 524.6 |
1250 | 1250 | 630 | 950 | 800 | 732 |
TAISONG the most reliable manufacturers and suppliers of steel punching spool bobbin. Please feel free to buy high quality steel punching spool bobbin for sale here from our factory. Good service and reasonable price are available.
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.

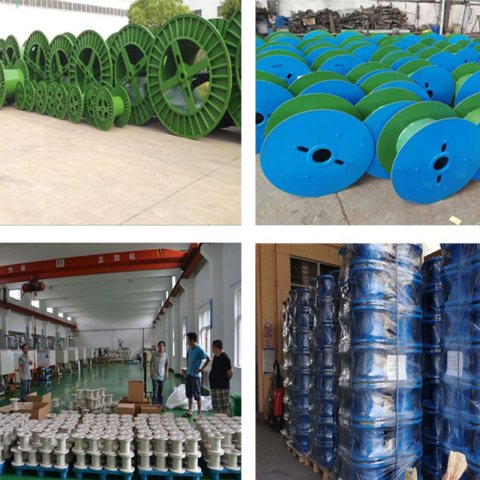

Shandong Taisong Industry & Trade Co., Ltd. Located at the foot of the beautiful Mount Tai, it provides packaging services for global rope, net, wire and cable enterprises. High-tech enterprises mainly engaged in wooden wire trays, European standard wooden trays, American standard wooden trays, export fumigation-free trays, all-iron wire trays, plastic wire trays, and paper wire trays, and can provide commodity inspection performance sheets. Dangerous packaging export provides dangerous goods packaging certificate. The company is a professional packaging products manufacturer with a wide variety of products.
Yes, please contact us in time.
Qingdao port, Shanghai port.
30% Deposit, L/C
7-10 days.
After the price is confirmed, you can request a sample to check our quality counter display. If you need samples, we will charge sample shipping fee. However, the sample shipping fee is refundable after order confirmation.
Email and message, mobile phone and WhatsApp will be online within 24 hours. Please send us your requirements and order information (product, quantity, destination port) and we will work out the best price soon.
