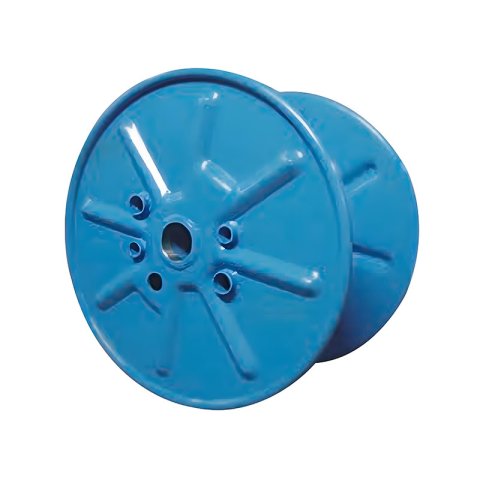

Steel Stamped Cable Spool for Wire and Cable Industry
Product Description
In accordance with GB4004-83, JB/T7600.3-94 and DIN46395 standards, the product is formed by punching and welding common carbon steelQ235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure.
The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.
TAISONG Wire Spool is a reel that provides the function of winding wires and cables for industrial and mining enterprises, which not only improves the production environment, but also improves the production efficiency.
TAISONG main products are: wire and cable machine turnover reels, delivery reels, flat iron shafts, steel wire spools and various ABS plastic reels, etc. We can develop, design and manufacture various non-standard products according to customer needs.
The company's products are widely used in ultra-high voltage, medium and low voltage, cross-linked, power cables, optical fiber cables, data communication cables, steel cords, steel wire ropes and other fields, and are equipped with major electrical equipment manufacturers, and are favored by customers.
Steel Coil Punching Bobbin/Reel/Spool/Drum
1. Application :
This product is stamped and formed by steel plate, and is produced according to customer requirements or JB/T8997.4-1999 DIN46395 standards.It is suitable for turnover or delivery of cables, wire ropes, steel cords, copper wires, aluminum wires, etc.
2. Specification
| specification | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Volume |
| 315 | 315 | 180 |
158 | 28
125/127 | 16 | 100 | 236 | 200 | 10.5 |
| 200 | 9.3 | ||||||||
| 240 | 7.7 | ||||||||
| 355 | 355 | 200 | 265 | 224 | 15.1 | ||||
| 250 | 11.2 | ||||||||
| 400 | 400 | 224 | 300 | 250 | 21.6 | ||||
| 280 | 16.0 | ||||||||
| 450 | 450 | 250 |
28 | 335 | 280 | 30.8 | |||
| 315 | 22.7 | ||||||||
| 500 | 500 | 280 | 375 | 315 | 42.5 | ||||
| 335 | 30.7 | ||||||||
| 560 | 560 | 315 | 425 | 355 | 59.8 | ||||
| 400 | 42.8 | ||||||||
| 630 | 630 | 355 | 475 | 400 | 86.2 | ||||
| 450 | 61.1 | ||||||||
| 710 | 710 | 400 | 530 | 450 | 121.6 | ||||
| 500 | 89.8 | ||||||||
| 800 | 800 | 450 | 40 | 170 | 600 | 500 | 172 | ||
| 560 | 128 | ||||||||
