Packaging services for rope, mesh, wire and cable companies worldwide.

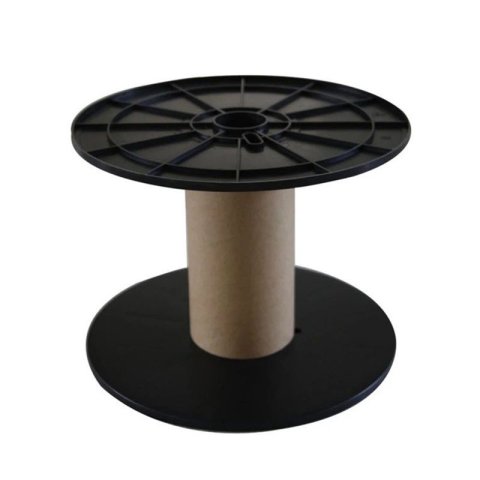

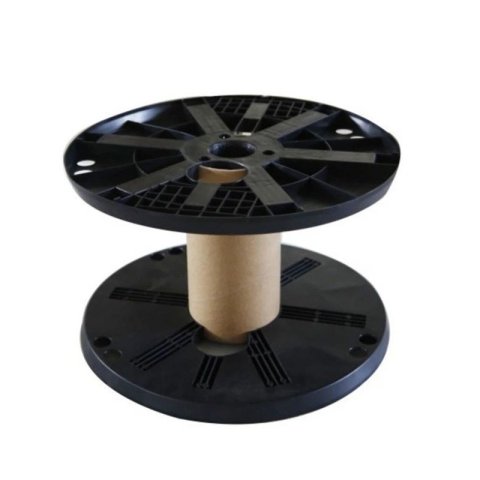

Name: Empty Plastic bobbin Material: PP Feature: Light weight, Non-toxic, Pollution free, Water/moisture resistant Corrosion preventive, Durability, Water proof Eco-friendly, recyclable/reusable, size flexible Easy to add LOGO good chemical resistant. Easy to clean and maintain Usage: Winding for Yarn, Fiber rope , Cable, optical cable Customize : Accept
Category: Plastic Wire Spools
E-Mail: boss@sdtsgm.com

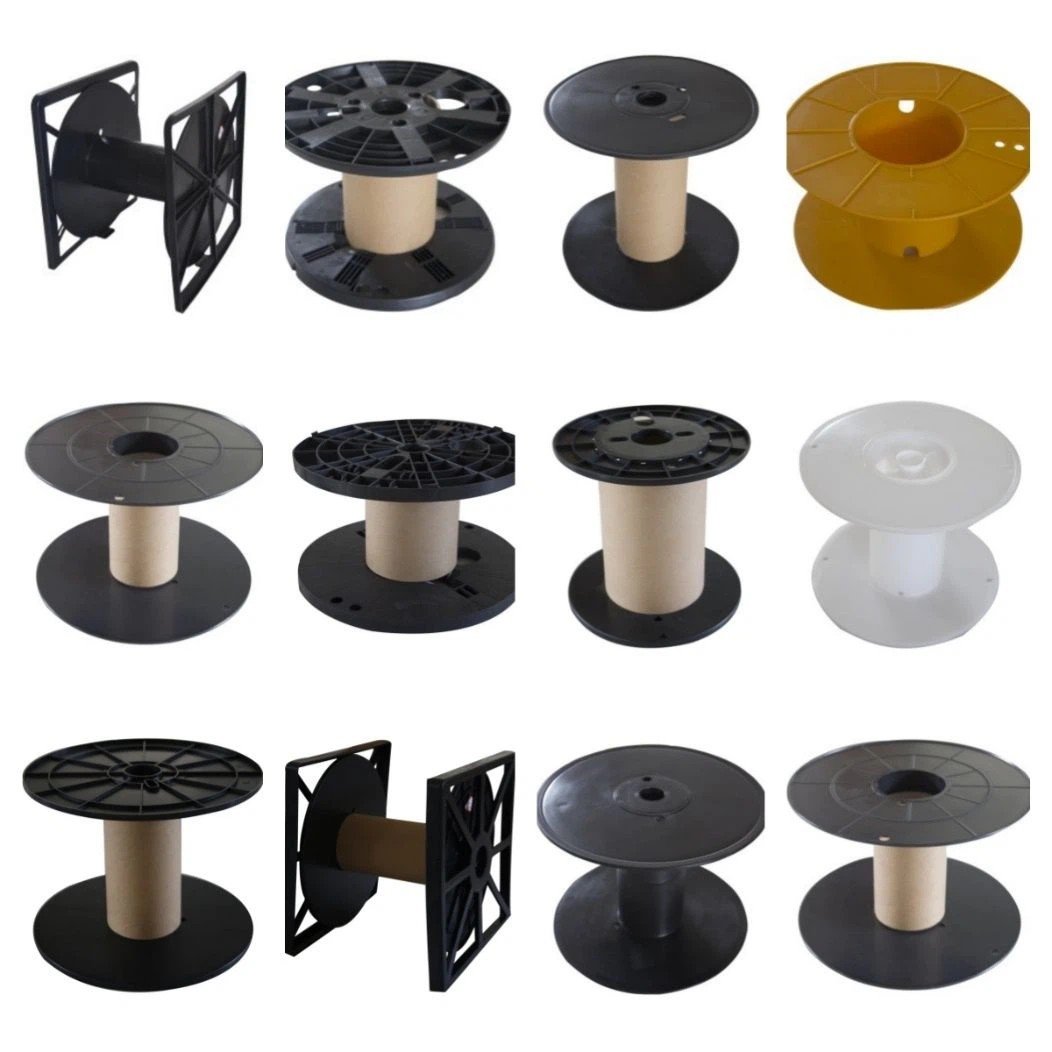

1) Wide variety of standard spool sizes for various applications
2) Custom spools available for specific needs, such as coaxial cable, rope, speaker wire, THHN wire, CATV wire, hose, chain, tubing, packing material, and fabrics
3) Industry-leading spool technology with continuous innovation for enhanced performance
4) Made with high impact recyclable engineering materials for sustainability
5) Ensures structural integrity and impact resistance for long-lasting use
6) Corrosion-resistant design for reliable performance even in harsh environments

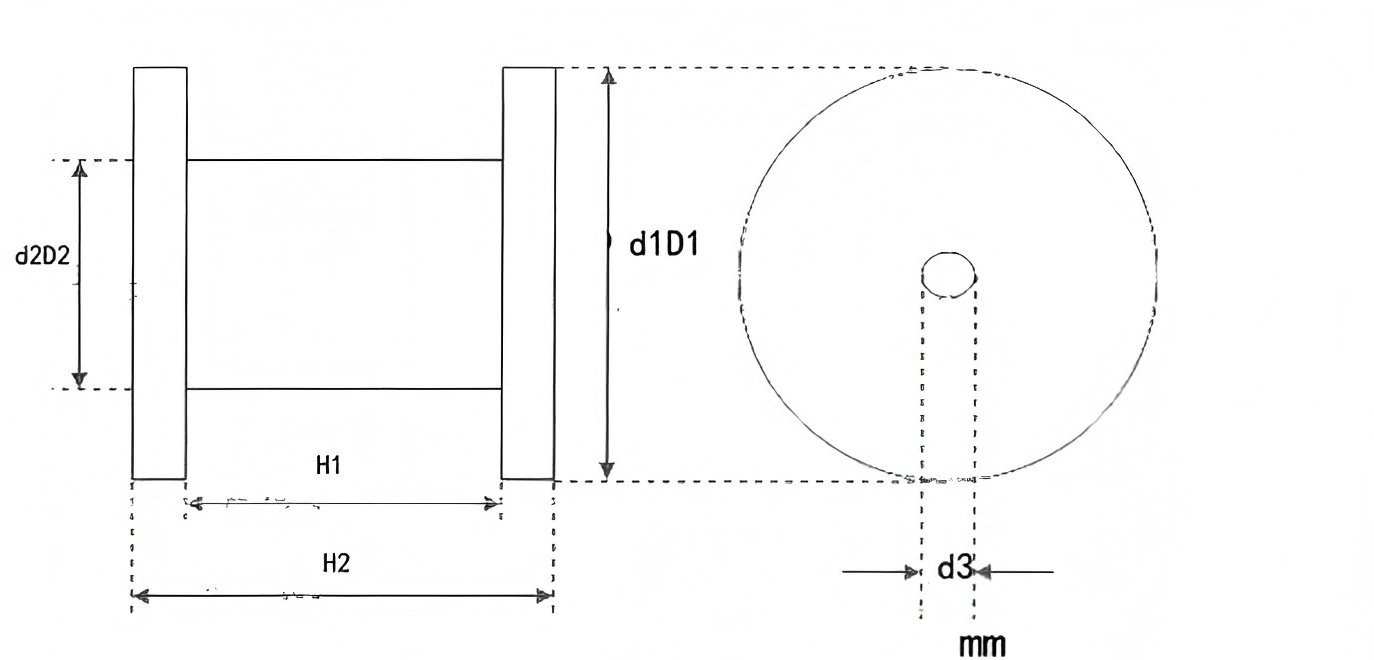

No | Flange Dia. | Barrel Dia. | Inside Width | Outside Width | Middle Hole Dia. | Flange Thickness | Carrying Hole Size | Distance between Middle Hole and Carrying Hole | Net Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
d1 | d2 | H1 | H2 | d3 | A1 | d4 | |||
PC-70 | 70 | 38 | 70 | 85 | 20 | 7 | No | No | 40 |
PC-80 | 80 | 50 | 64 | 80 | 20 | 8 | 7 | 20 | 70 |
PC-83 | 83 | 45 | 100 | 120 | 20 | 10 | No | No | 70 |
PC-100A | 100 | 45 | 70 | 88 | 20 | 9 | No | No | 110 |
PC-100B | 100 | 45 | 100 | 120 | 20 | 10 | No | No | 100 |
PC-125A | 125 | 65 | 100 | 120 | 20 | 10 | 7 | 20 | 180 |
PC-125B | 125 | 70 | 100 | 120 | 20 | 10 | No | No | 170 |
PC-130A | 130 | 65 | 100 | 120 | 22/25 | 10 | No | No | 200 |
PC-130B | 130 | 65 | 100 | 120 | 22 | 10 | No | No | 210 |
SH-16 | 150 | 90 | 100 | 124 | 30 | 12 | 12 | 26 | 230 |
PC-185A | 185 | 128 | 155 | 178 | 30 | 11 | No | No | 400 |
PC-185B | 185 | 128 | 155 | 178 | 30 | 11 | No | No | 500 |
PC-185C | 185 | 130 | 160 | 180 | 30 | 10 | No | No | 500 |
PC-220A | 220 | 110 | 155 | 185 | 40 | 15 | 12 | 42 | 660 |
PC-220B | 220 | 110 | 155 | 185 | 38 | 15 | 15 | 38 | 660 |
PC-220C | 220 | 110 | 155 | 185 | 30 | 15 | 14 | 38 | 660 |
PC-250 | 250 | 110 | 155 | 185 | 40 | 15 | 12 | 42 | 870 |
PC-300A | 300 | 180 | 170 | 200 | 32 | 15 | 17 | 45 | 1400 |
PC-300B | 300 | 180 | 170 | 200 | 100 | 15 | 20 | 125 | 1400 |
PC-355 | 355 | 224 | 160 | 200 | 36 | 20 | 26 | 50~80 | 1950 |
PC-410 | 410 | 310 | 180 | 228 | 70 | 24 | No | No | 4550 |
PC-500A | 500 | 315 | 180 | 250 | 40 | 35 | 26 | 70~100 | 8450 |
PC-500A1 | 497 | 315 | 180 | 250 | 40 | 35 | 26 | 70~100 | 8450 |
PC-500B | 500 | 250 | 250 | 300 | 56 | 25 | 26 | 70~100 | 8600 |
PC-500B1 | 500 | 250 | 240 | 290 | 40 | 25 | 26 | 70~100 | 9020 |
PC-500C | 500 | 250 | 235 | 300 | 56 | 20 | 26 | 70~100 | 8600 |
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.
Shandong Taisong Industry & Trade Co., Ltd. Located at the foot of the beautiful Mount Tai, it provides packaging services for global rope, net, wire and cable enterprises. High-tech enterprises mainly engaged in wooden wire trays, European standard wooden trays, American standard wooden trays, export fumigation-free trays, all-iron wire trays, plastic wire trays, and paper wire trays, and can provide commodity inspection performance sheets. Dangerous packaging export provides dangerous goods packaging certificate. The company is a professional packaging products manufacturer with a wide variety of products.
Yes, please contact us in time.
Qingdao port, Shanghai port.
30% Deposit, L/C
7-10 days.
After the price is confirmed, you can request a sample to check our quality counter display. If you need samples, we will charge sample shipping fee. However, the sample shipping fee is refundable after order confirmation.
Email and message, mobile phone and WhatsApp will be online within 24 hours. Please send us your requirements and order information (product, quantity, destination port) and we will work out the best price soon.
