Flat Winding Spools With Conical Flanges

Flat Winding Spools With Conical Flanges

We designed the side panels as conical side panels, which greatly improves the tensile strength of the side panels and reduces the deformation of the side panels after winding, thereby achieving smooth cable arrangement. The smooth conical side panels can reduce resistance during wire payout, allowing for easy sliding and high-speed uninterrupted wire payout.

Category: Plastic Wire Spools

E-Mail: boss@sdtsgm.com

Inquire Now WhatsApp E-mail

Keyword:

Plastic Wire Spools

Product Description

Precautions

● As the product material is relatively light, please avoid long-term accumulation during storage to avoid deformation of the product;
● If not used for a long time, please store it in a cool and shaded place. Heat accumulation can easily cause product deformation and premature aging;
● During use, do not contact with corrosive organic solvents, as chemical reactions are likely to occur and stress cracking may occur due to the influence of solvents;
● The company provides two packaging methods: woven bags and cartons.

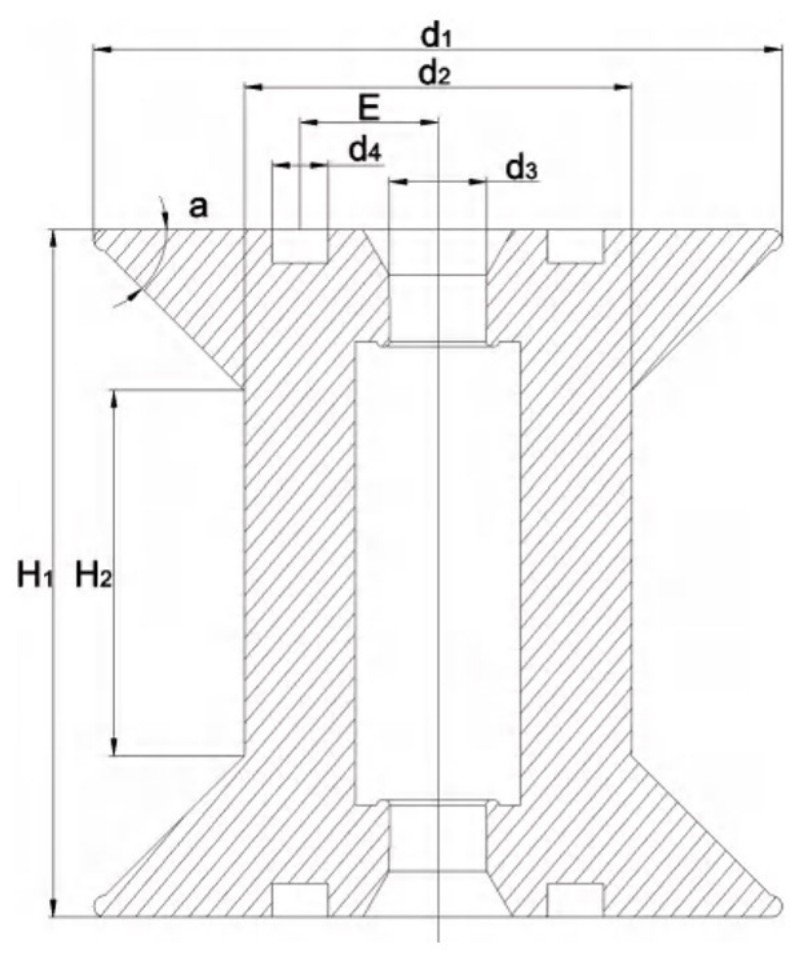

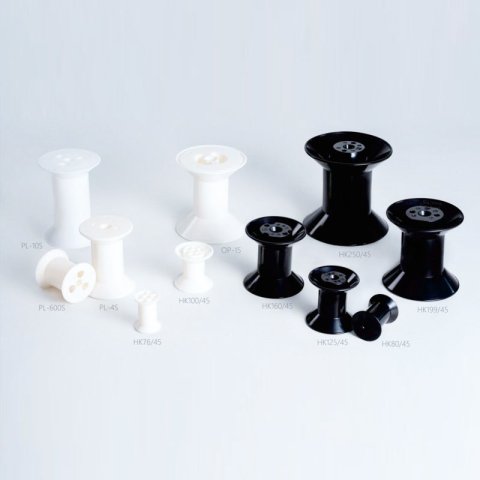

Model Specifications	Product Weight (g)	d1	d2	H1	H2	d3	a	d4	E	Raw material
PL-4SA	320	135	80	110	175	22	32.5	10	32	ABS
PL-4SB	320	135	80	110	175	26	32.5	10	32	ABS
PL-4SC	320	135	80	110	175	20	32.5	10	32	ABS
PL-4SD	260	135	80	110	175	22	32.5	9	32	ABS
PL-10S	507	170	100	160	230	22	35	9.5	32	ABS
PL-600S	165	106	75	75	112	20	18.5	/	/	ABS
PL-600S	160	105	82	81	112	20	15.5	/	/	ABS
HK76/45B	68	63.5	44.4	60	86.3	17	13.25	/	/	ABS
HK80/45	85	80	55	70	100	16	15	/	/	ABS
HK100/45	130	100	56	49	100	16	25.5	7	20	ABS
HK125/45	165	125	71	65	125	16	30	7	20	ABS
HK125/45	160	125	71	65	125	16	30	7	20	ABS
HK159/45	315	160	90	85	160	22	37.5	13	32	ABS

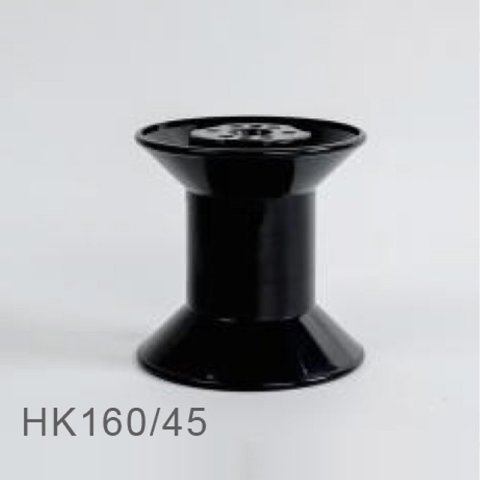

HK160/45A	315	160	90	85	160	22	37.5	13	32	ABS
HK199/45Ø22	600	200	112	106	200	22	47	14	32	ABS
HK199/45Ø26	600	200	112	106	200	26	47	14	32	ABS

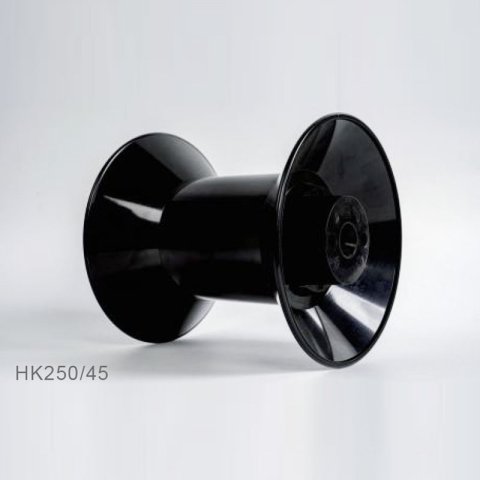

HK250/45Ø22	1000	250	140	133	250	22	58.5	14	32	ABS
HK250/45Ø26	1000	250	140	133	250	26	58.5	14	32	ABS
OP-5A	800	200	99.5	115	220	30	52.5	/	/	ABS
OP-5B	1050	220	99.5	75	200	77	62.5	/	/	ABS
