Steel bobbin with massive flanges , barrel, bore and hub. Dimension either according to customer's specifications or China national standards, JB/T8997.2 & JB/T8997.4-2013, JB/T7600.2-2008, DIN46395 /DIN46397 standard.
Category: Flat High Speed Spool
E-Mail: boss@sdtsgm.com

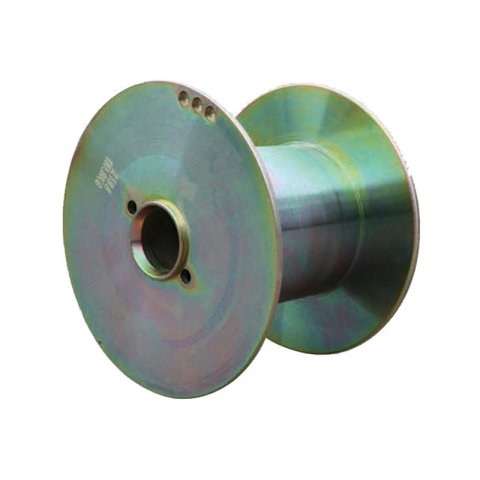

High Speed Customized Flat Steel Bobbin Spool Reel For Wire Cable Machine
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1pcs |
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
| Material: | Q235 Steel | Application: | Winding |
| Size: | 200-1250 | Servicer: | OEM,ODM,Standard |
| Tolerance: | 0.02mm -0.05mm | Color: | Customized |
| Highlight: | Flat Steel Bobbin Spool Reel , Wire Cable Bobbin Spool Reel , Q235 Steel Bobbin Spool Reel | ||
High speed Customized Flat Steel Bobbin Spool Reel for wire cable machine
Steel Coil Punching Bobbin/Reel/Spool/Drum
1. Application :
It is suitable for wire drawing, stranding, bundle wire, armoring, shielding and other equipment of cables, steel wires and steel ropes and pipelines. This product is produced according to customer requirements or JB/T7600.3-94, DIN46395/DIN46397 ,GB4004-83 standards.
Steel bobbin with massive flanges , barrel, bore and hub. Dimension either according to customer's specifications or China national standards, JB/T8997.2 & JB/T8997.4-2013, JB/T7600.2-2008, DIN46395 /DIN46397 standard.
Dynamic balancing and meet speed 25m/s-50m/s.
For cable, ferrous and non-ferrous wire. For drawing, stranding and bunching machines.
| Type | d1 | d2 | d4 | d5 | L1 | L2 | e | Volume |
| 200 | 200 | 112 | 36 | 16 | 150 | 125 | 40 | 2.69 |
| 250 | 250 | 157 | 56 | 16 | 190 | 160 | 50 | 4.75 |
| 315 | 315 | 217 | 125/127 | 18 | 290 | 270 | 90 | 11.05 |
| 355 | 355 | 217 | 125/127 | 18 | 290 | 270 | 90 | 16.73 |
| 400 | 400 | 165 | 70 | 16 | 270 | 250 | 50 | 26.09 |
| 217 | 125/127 | 18 | 300 | 280 | 90 | 24.83 | ||
| 500 | 500 | 217 | 70 | 20 | 320 | 320 | 50 | 47.78 |
| 500 | 125/127 | 28 | 375 | 315 | 100 | 44.1 | ||
| 630 | 630 | 355 | 125/127 | 28 | 475 | 400 | 100 | 86.2 |
| 800 | 800 | 399 | 125/127 | 40 | 536 | 500 | 160 | 188.4 |
| Specifications | d1 | d2 | d4 | d5 | L1 | L2 | e | V1dm³ | |||||||
| 200 | 200 | 112 | 36 | 16 | 150 | 125 | 40 | 2.69 | |||||||
| 250 | 250 | 157 | 56 | 16 | 190 | 160 | 50 | 4.75 | |||||||
| 300 | 300 | 217 | 125/127 | 18 | 290 | 270 | 90 | 9.09 | |||||||
| 315 | 315 | 217 | 125/127 | 18 | 290 | 270 | 90 | 11.05 | |||||||
| 355 | 355 | 217 | 125/127 | 18 | 290 | 270 | 90 | 16.73 | |||||||
| 400 | 400 | 165 | 70 | 16 | 270 | 250 | 50 | 26.09 | |||||||
| 217 | 125/127 | 18 | 300 | 280 | 90 | 24.82 | |||||||||
| 500 | 500 | 217 | 70 | 20 | 320 | 320 | 50 | 47.78 | |||||||
| 250 | 125/127 | 28 | 375 | 315 | 100 | 44.1 | |||||||||
| 630 | 630 | 355 | 125/127 | 28 | 475 | 400 | 100 | 86.2 | |||||||
| 800 | 800 | 399 | 125/127 | 40 | 536 | 500 | 160 | 188.4 | |||||||
| Specifications | d1 | d2 | d4 | d5 | L1 | L2 | e | V1dm³ | |||||||
| 200 | 200 | 112 | 36 | 16 | 150 | 125 | 40 | 2.69 | |||||||
| 250 | 250 | 157 | 56 | 16 | 190 | 160 | 50 | 4.75 | |||||||
| 300 | 300 | 217 | 125/127 | 18 | 290 | 270 | 90 | 9.09 | |||||||
| 315 | 315 | 217 | 125/127 | 18 | 290 | 270 | 90 | 11.05 | |||||||
| 355 | 355 | 217 | 125/127 | 18 | 290 | 270 | 90 | 16.73 | |||||||
| 400 | 400 | 165 | 70 | 16 | 270 | 250 | 50 | 26.09 | |||||||
| 217 | 125/127 | 18 | 300 | 280 | 90 | 24.82 | |||||||||
| 500 | 500 | 217 | 70 | 20 | 320 | 320 | 50 | 47.78 | |||||||
| 250 | 125/127 | 28 | 375 | 315 | 100 | 44.1 | |||||||||
| 630 | 630 | 355 | 125/127 | 28 | 475 | 400 | 100 | 86.2 | |||||||
| 800 | 800 | 399 | 125/127 | 40 | 536 | 500 | 160 | 188.4 | |||||||
