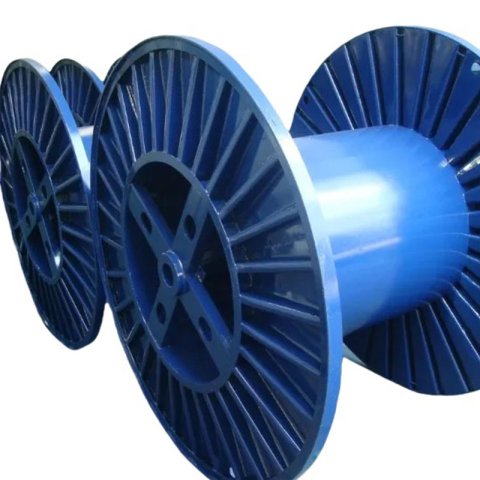

Knock-down Spool
Knock-down Spool Product Description Application: Cable and rope process (reinforced version) or transportation (lightweight version). Can be supplied as knock down condition to reduce transport cost.Standard: Painted outside flanges as per customer's specification.Surface finish: Fully painted, zinc galvanized.Customized: Weight, logo and numbering (painted or welded plate). Optionals: Statically or dynamically balancing, hardened changeable bushings, barrel and flanges with reinforcements for heavy duty process (drum twister), lifting hooks, slots for fixing the cable.Standard flange (mm): 1000,1250,1600,1800,2000 and over. Other dimensions are available.
Application: Cable and rope process (reinforced version) or transportation (lightweight version). Can be supplied as knock down condition to reduce transport cost.
Standard: Painted outside flanges as per customer's specification.
Surface finish: Fully painted, zinc galvanized.
Customized: Weight, logo and numbering (painted or welded plate).
Optionals: Statically or dynamically balancing, hardened changeable bushings, barrel and flanges with reinforcements for heavy duty process (drum twister), lifting hooks, slots for fixing the cable.
Standard flange (mm): 1000,1250,1600,1800,2000 and over. Other dimensions are available.
Technical Parameter
Serial Number
Specification Model
Lateral Plate Diameter D1
Major Diameter D2
Axle Hole Diameter D4
Carrying Hole Diameter D5
Center Distance E of Axle Hole and Carrying Hole
External Width L1
Internal Width L2
1
800
800
400
80
40
160
600
500
2
1000
1000
500
80
40
160
750
630
3
1120
1120
560
80
40
160
850
710
4
1250
1250
630
80
40
160
950
800
5
1400
1400
710
80
65
300
1060
900
6
1600
1600
800
80
65
300
1180
1000
7
1800
1800
1000
100
65
300
1320
1120
8
2000
2000
1120
1235
65
300
1500
1250
9
2240
2240
1250
125
65
300
1700
1400
10
2500
2500
1500
125
65
300
1900
1600
11
2800
2800
1800
140
65
300
2120
1800
12
3150
3150
2000
160
65
500
2300
2000
13
4000
4000
2800
200
80
500
2300
2000
More dimensions according to your drawing.
