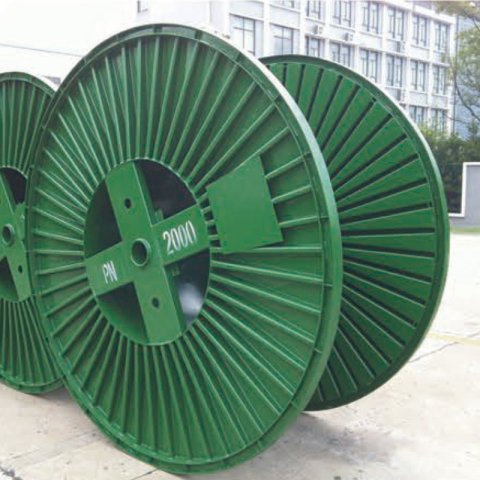

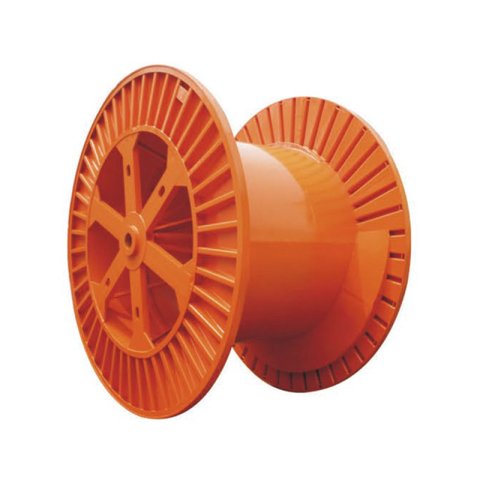

Bobbin for cable, rope and strand. Dimension either according to customer's specifications or China national standards,JB/T7600.4-2008, DIN46395 standard.
Category: Reinforced Corrugated Spool
E-Mail: boss@sdtsgm.com
Bobbin for cable, rope and strand. Dimension either according to customer's specifications or China national standards, JB/T7600.4-2008, DIN46395 standard.
Specifications | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Vidm³ |
800 | 800 | 400 | 100 | 80 | 40 | 160 | 600 | 500 | 188.5 |
900 | 900 | 450 | 160 | 670 | 560 | 267.2 | |||
1000 | 1000 | 500 | 750 | 630 | 371.1 | ||||
1150 | 1150 | 560 | 850 | 710 | 524.6 | ||||
1250 | 1250 | 630 | 950 | 800 | 732.4 | ||||
1400 | 1400 | 710 | 160 | 80 | 65 | 300 | 1060 | 900 | 1029.1 |
1600 | 1600 | 800 | 160 | 80 | 70-130 | 300 | 1180 | 1000 | 1508.0 |
1800 | 1800 | 1000 | 200 | 100 | 1320 | 1120 | 1970.4 | ||
2000 | 2000 | 1120 | 250 | 125 | 1500 | 1250 | 2695.5 | ||
2240 | 2240 | 1250 | 1700 | 1400 | 3799.1 | ||||
2500 | 2500 | 1500 | 1900 | 1600 | 5026.5 | ||||
2800 | 2800 | 1800 | 280 | 140 | 2120 | 1800 | 6503.1 | ||
3150 | 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 | 9915.6 |
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.
Shandong Taisong Industry & Trade Co., Ltd. Located at the foot of the beautiful Mount Tai, it provides packaging services for global rope, net, wire and cable enterprises. High-tech enterprises mainly engaged in wooden wire trays, European standard wooden trays, American standard wooden trays, export fumigation-free trays, all-iron wire trays, plastic wire trays, and paper wire trays, and can provide commodity inspection performance sheets. Dangerous packaging export provides dangerous goods packaging certificate. The company is a professional packaging products manufacturer with a wide variety of products.
Yes, please contact us in time.
Qingdao port, Shanghai port.
30% Deposit, L/C
7-10 days.
After the price is confirmed, you can request a sample to check our quality counter display. If you need samples, we will charge sample shipping fee. However, the sample shipping fee is refundable after order confirmation.
Email and message, mobile phone and WhatsApp will be online within 24 hours. Please send us your requirements and order information (product, quantity, destination port) and we will work out the best price soon.
