Specification
Type | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | V1dm³ |
| 800 | 800 | 400 | 100 | 80 | 40 | 160 | 600 | 500 | 188.5 |
| 900 | 900 | 450 | 160 | 670 | 560 | 267.2 |
| 1000 | 1000 | 500 | 750 | 630 | 371.1 |
| 1150 | 1150 | 560 | 850 | 710 | 524.6 |
| 1250 | 1250 | 630 | 950 | 800 | 732.4 |
| 1400 | 1400 | 710 | 160 | 80 | 65 | 300 | 1060 | 900 | 1029.1 |
| 1600 | 1600 | 800 | 160 | 80 | 70-130 | 300 | 1180 | 1000 | 1508.0 |
| 1800 | 1800 | 1000 | 200 | 100 | 1320 | 1120 | 1970.4 |
| 2000 | 2000 | 1120 | 250 | 125 | 1500 | 1250 | 2695.5 |
| 2240 | 2240 | 1250 | 1700 | 1400 | 3799.1 |
| 2500 | 2500 | 1500 | 1900 | 1600 | 5026.5 |
| 2800 | 2800 | 1800 | 280 | 140 | 2120 | 1800 | 6503.1 |
| 3150 | 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 | 9915.6 |
Hello Dear Visitor, For any style you browse, our company can be customized (style, size, etc.), please contact us or please leave your contact information, we will contact you at the first time.

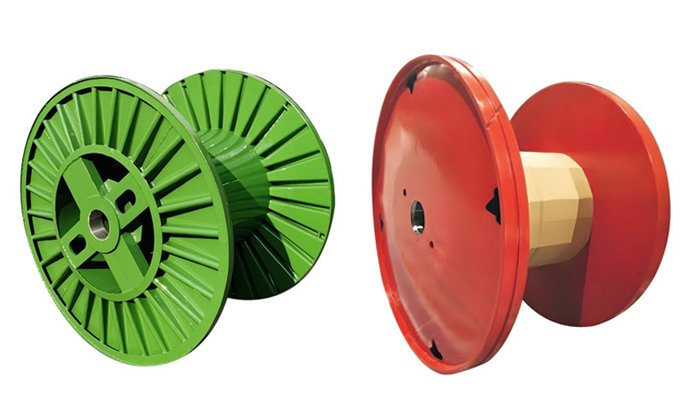

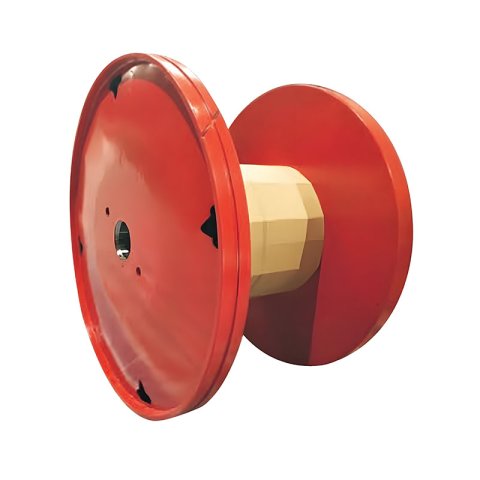

Bobbin for cable, rope and strand.Dimension eitheraccording to customer's specifications or Chinanational standards,JB/T7600.4-2008, DIN46395 standard.Process bobbin.
Metal bobbins, as a tool widely used in many fields, mainly have the following characteristics and uses:
1、Definition and Classification
Metal bobbin is a kind of bobbin made of metal material, which is mainly used for winding, storing, transporting and protecting all kinds of wires, such as wires, cables, metal wires and so on. According to the different materials, metal bobbins can be divided into iron, stainless steel, aluminum alloy and other types. These materials have their own advantages and disadvantages, such as iron bobbins low cost but easy to rust, stainless steel bobbins corrosion resistance but higher prices, aluminum alloy bobbins have a better overall performance.
2, features and advantages
Strong load-bearing capacity: metal bobbins because of the use of metal materials, with high strength and load-bearing capacity, able to carry heavier wire and not easy to deform.
Good corrosion resistance (for stainless steel and aluminum alloy materials): part of the metal bobbin, such as stainless steel and aluminum alloy materials, has excellent corrosion resistance, can be used for a long time in a humid, corrosive environment without damage.
Long service life: the structure of metal bobbins is stable and durable, with a relatively long service life.
High safety: the design of metal bobbins often take into account safety factors, such as anti-slip, anti-electricity design, to ensure the safety of personnel and equipment in the process of use.
3, application areas
Metal bobbins are widely used in electrical appliances, communications, machinery, construction and other fields. In the electrical industry, metal bobbins are used for storing and transporting wires and cables; in the communication industry, they are used for winding and fixing communication fiber optic cables; in the machinery industry, metal bobbins are used as important parts for the manufacture and maintenance of equipment.
4, the use of precautions
Avoid overloading: When using metal bobbins, care should be taken not to overload the bobbins so as not to damage the structure and performance of the bobbins.
Anti-corrosion treatment: For iron and other metal bobbins that are prone to rust, they should be treated with anti-corrosion treatment before use, such as painting and galvanizing.
Regular Inspection: Regularly inspect and maintain the metal bobbins to ensure the integrity of their structure and performance. If damage or failure is found it should be repaired or replaced in time.
5、Market and choice
There are many types of metal bobbins on the market, and users should make comprehensive consideration according to the actual demand and budget when choosing. At the same time, should choose products produced by regular manufacturers to ensure product quality and after-sales service.
In summary, as an important tool and equipment, metal bobbins play an irreplaceable role in many fields. With the continuous progress of technology and the continuous development of the market, the performance and use of metal bobbins will continue to be expanded and improved.
